An skilled maker can reproduce all kinds of economic digital units at a fraction of their regular worth. Clearly, this can be a very good ability to have. Sadly, when these devices shrink right down to smaller and smaller sizes, it will definitely turns into all however not possible to repeat them with hobbyist-grade elements and instruments.

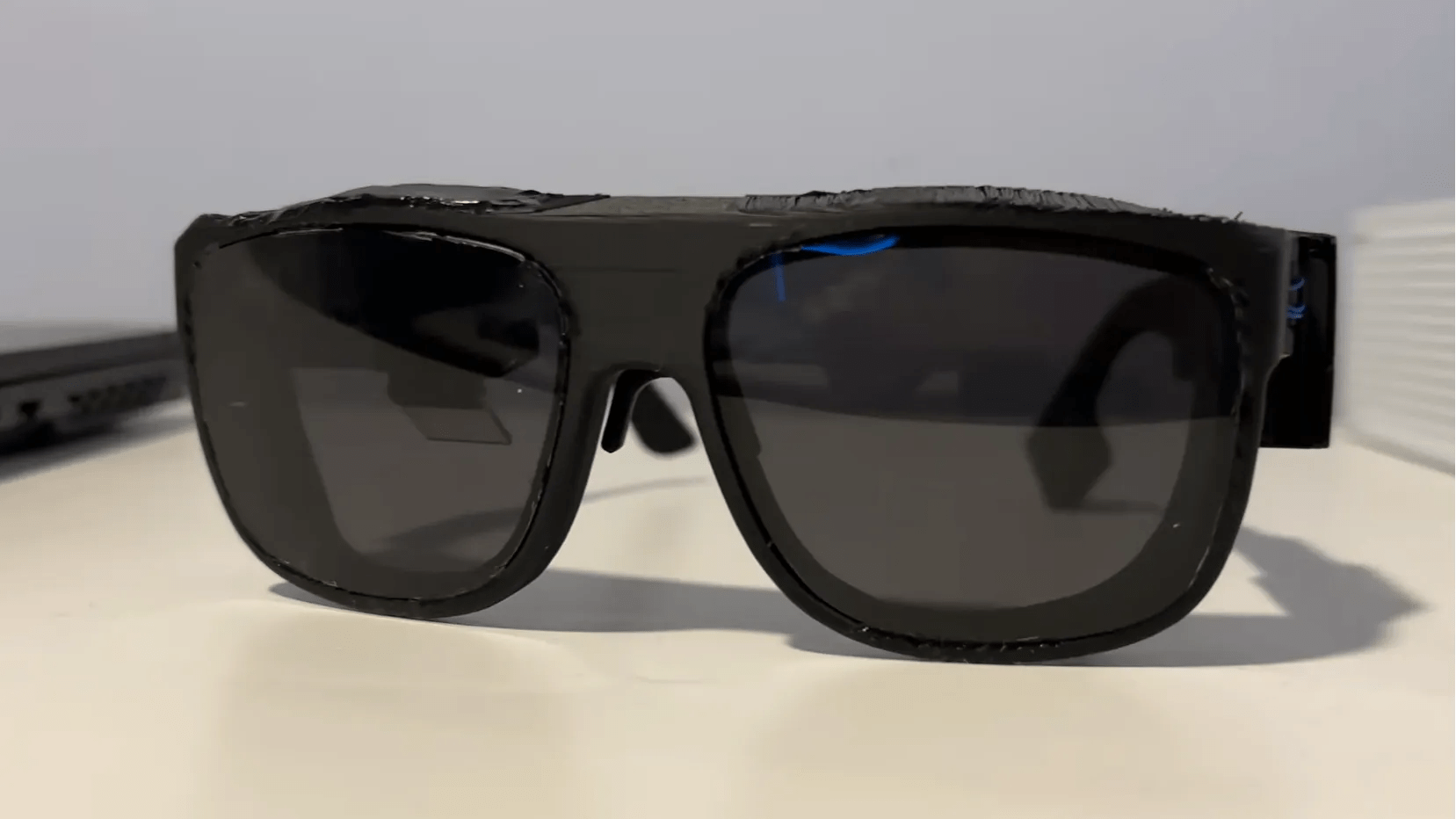

Augmented actuality (AR) glasses positively fall into this class, however YouTuber Mañolo determined to construct a pair from scratch anyway. No, they aren’t as compact or polished as an off-the-shelf system — and so they aren’t as succesful, both, for that matter. However they’re completely tailor-made to Mañolo’s wants, and that’s all that actually issues.
Putting in the {hardware} within the body (📷: Mañolo)
The challenge, known as Onyx AR 2.0, takes a modular strategy that leans closely on 3D printing and intelligent part integration. As a substitute of trying to miniaturize all the pieces past what he might work with, Mañolo distributes the electronics throughout a {custom} body, with every part serving a selected goal. The result’s a wearable system that appears chunky by client requirements, however nonetheless stays fairly sensible for a DIY construct.
On the core of the system is a custom-designed energy administration board. This small PCB handles battery charging and voltage regulation, stepping up the output from a single-cell LiPo battery to a steady 5V rail for the remainder of the electronics. A tactile energy change and standing LEDs present fundamental consumer suggestions, conserving the design easy and self-contained.
A tiny microdisplay, paired with a devoted driver board, types the premise of the AR expertise. The motive force converts incoming composite video right into a format the show can perceive, whereas a magnifier lens ensures the picture seems at a snug focal distance. A semi-transparent combiner — basically a fastidiously positioned piece of glass — displays the projected picture into the wearer’s eye whereas nonetheless permitting visibility of the actual world.
The show is mirrored in entrance of the wearer’s eye (📷: Mañolo)
To maintain the system wi-fi, Mañolo repurposes a video receiver module generally present in price range automotive digital camera kits. This enables the glasses to simply accept a reside video feed with none bodily tether. Within the demonstration setup, a Raspberry Pi single-board laptop acts because the transmitter, streaming content material on to the headset.
The suitable temple of the glasses homes many of the core electronics, together with the battery, charging circuitry, and receiver. The left temple, in the meantime, is devoted to the show driver, which has been slimmed down by eradicating cumbersome connectors. High-quality wires run throughout the entrance body to hyperlink each side collectively, whereas a versatile cable extender connects the show and its controller.
In the long run, Onyx AR 2.0 isn’t making an attempt to compete with business AR glasses. As a substitute, it demonstrates that with sufficient ingenuity, even advanced trendy applied sciences will be constructed proper in your workbench at residence.
