Cut up-flap shows was mundane vessels of data situated in locations like practice stations and airports. They have been standard as a result of they served a utilitarian objective comparatively reliably at an affordable value. However they turned out of date as soon as CRTs after which LCDs reached low sufficient costs. At the moment, split-flap shows are not mundane or utilitarian, they’re hip. Adam G needed to be hip, so he created his personal supersized split-flap show.
You may nonetheless get new split-flap shows, however there are solely a few firms manufacturing them. Most that you just see are classic. In each circumstances, they are typically fairly costly. Adam G didn’t wish to spend some huge cash, so as a substitute he spent an unlimited period of time constructing this.

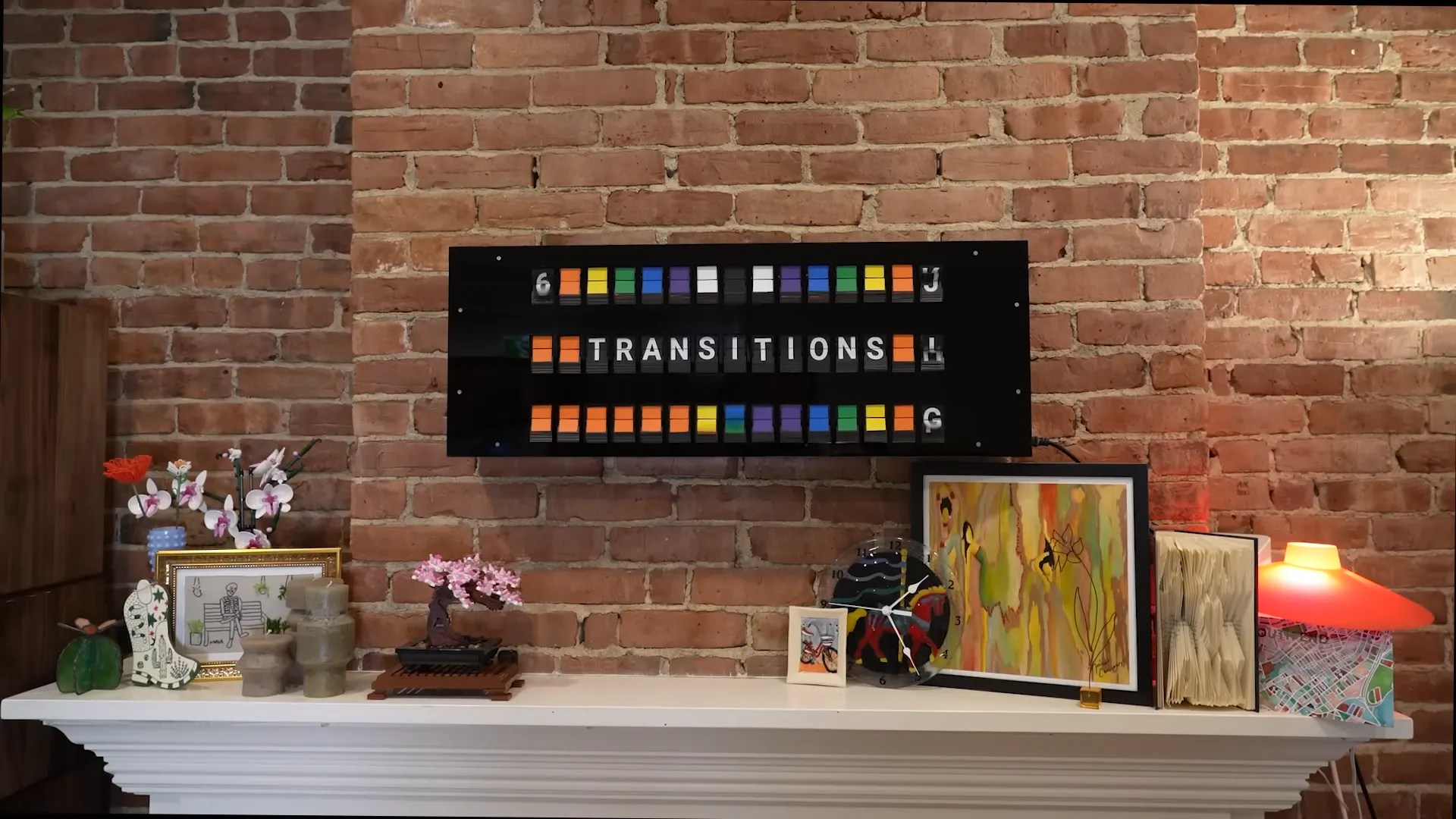

Cut up-flap initiatives like this have change into fairly frequent, however most are small. Adam G even constructed a small one himself, based mostly on present design. However this new one is massive — related in dimension to what would have proven practice departure and arrival instances again within the day. This new one has 3 strains and 15 characters per line. I’ll prevent from doing the calculations: that’s 45 flappy wheels in whole. On prime of that, Adam G added a lot of further characters past the standard alphanumeric set.
Every character requires two necessary elements to work: a stepper motor for rotation and a Corridor impact sensor to search out the house place. To simplify wiring and development, Adam G designed the show to be modular. Every module accommodates a flap wheel, a stepper motor, a Corridor impact sensor, a customized PCB with stepper driver and sensor connection, and a 3D-printed enclosure.
These modules all hooked up to a DIN rail on a backing board. The rail gives energy and in addition a knowledge bus that connects to the central controller: a Raspberry Pi single-board pc. The Pi hosts an online interface that Adam G can entry to set the message on the show.
Better of all, this entire challenge is open-source and you’ll construct your personal. Adam G focused a construct price beneath $1,000, which could be very cheap for a show of this dimension and functionality.
