The final time I performed Minecraft, nearly 15 years in the past, it was a reasonably primary sport, just like the digital equal of a set of LEGO bricks. You can mine and you possibly can assemble staple items to assist in mining, however that was just about it. Apparently, issues have modified dramatically within the interim and present variations of Minecraft have all types of superior performance. You’ll be able to even craft an in-game compass that factors in direction of a lodestone or the world spawn level! And now you can also make a Minecraft compass in actual life, because of this mission by chaosgoo.

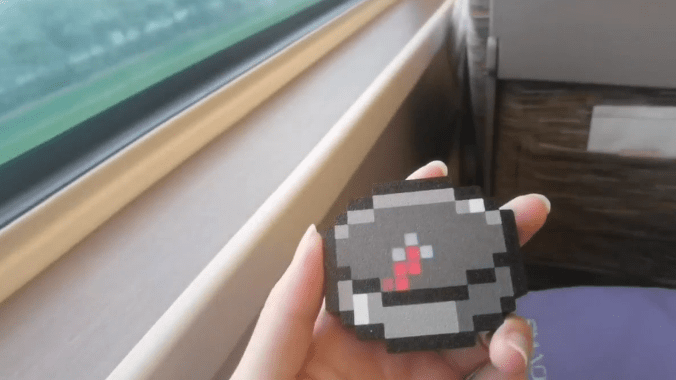

This DIY system is a delight. It appears identical to the pixelated, blocky compass in Minecraft, however it truly capabilities in the true world. Transfer it round, and the needle will compensate and rotate to stay pointing on the vacation spot. And that may be a respectable vacation spot, which the consumer units utilizing a map within the companion app. That may be the consumer’s residence, a retailer they need to go to, or a suspiciously mineral-laden sq. rock they present in a neighborhood park.
That was no small achievement and to make it occur, chaosgoo needed to design a very customized PCB to deal with the performance. That PCB appears very nice and the bottom even incorporates a printed crafting recipe for the in-game compass, together with some related code.
The PCB is fairly advanced and on the coronary heart of it’s an ESP32-C3-MINI microcontroller, which has each Wi-Fi and Bluetooth adapters built-in. Different parts embody a USB connector, a lithium battery charger, and a digital compass.
Importantly, the PCB additionally hosts a matrix of 42 TX1812IJA-F01 RGB LEDs. Based mostly on the board schematic, it appears that evidently these are individually addressable RGB LEDs, just like the favored WS2812b. Due to the intelligent use of PET LGT075J materials as a lightweight diffuser, the compass needle doesn’t look like glowing LEDs. In daylight at the very least, it appears like it’s manufactured from voxels that magically transfer across the floor — a very neat impact that I haven’t seen performed this effectively earlier than.
The enclosure is 3D-printable and is concerning the measurement of the palm of a hand. It seems to be slim sufficient to tuck right into a pocket.
If you wish to construct your personal, it will be a bit of difficult, because the documentation was written in Chinese language and it principally covers the software program. However yow will discover the 3D fashions on MakerWorld, the PCB information on OSHW Hub, and every part else on GitHub.
