3D printers should not Star Trek-style replicators. Most 3D printers can solely fabricate elements in a single materials and that materials is often some type of plastic. However multi-material 3D printers do exist and by taking that concept to its limits, a workforce of researchers at MIT was in a position to construct this 3D printer that may produce full and useful electrical motors.
The workforce didn’t have to start out from scratch, as a result of they had been in a position to make use of an E3D ToolChanger 3D printer as the inspiration for this mission. That printer mannequin got here out a number of years in the past and is now discontinued, nevertheless it was and nonetheless is fairly distinctive. It will probably swap between toolheads on-the-fly to print with completely different supplies, which is a functionality most customers reap the benefits of to print with a number of colours or a number of sorts of thermoplastic filament materials, akin to PLA and PETG.

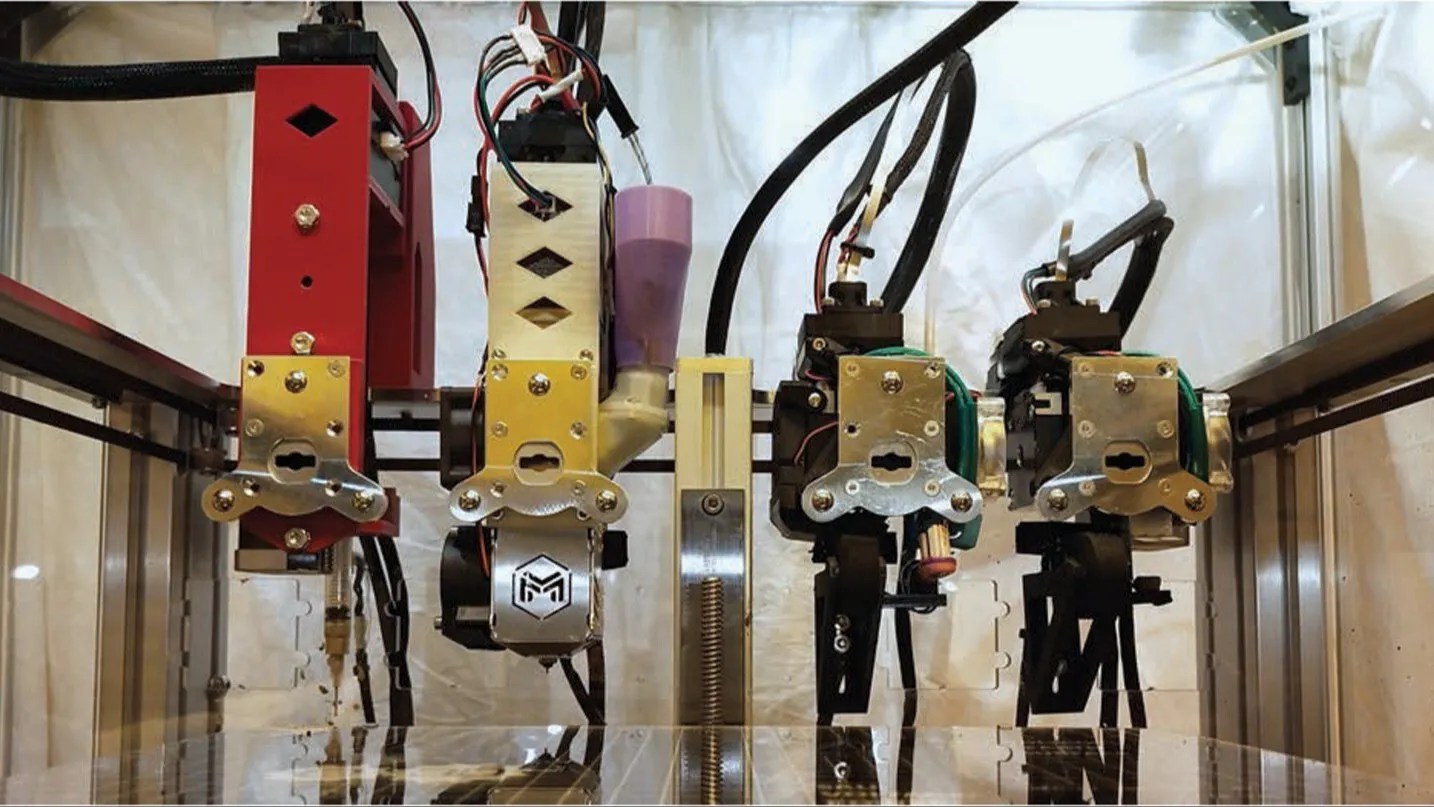

On this case, nevertheless, the MIT workforce developed their very own customized toolheads that dramatically expanded the out there supplies. Two of the 4 toolheads are standard and used for normal PLA+ and versatile TPU. The third toolhead accepts pellets quite than filament and the researchers used that for both onerous or tender magnets, as they might combine particular ratios of pellets to realize the specified outcomes. The fourth toolhead makes use of a syringe for extrusion, so it may possibly print a particular electrically conductive silver ink.
Put these altogether and you’ve got: dielectric materials, conductive materials, magnetic materials (onerous and tender), and versatile materials, all on-demand. That’s all the things it’s good to 3D-print a variety of useful electrical elements.
Essentially the most spectacular demonstration offered by the researchers of their paper is a linear electrical motor. It’s a versatile spring, onerous magnets, a inflexible substrate, and conductive traces forming a coil — all 3D-printed. When energy is utilized to the traces, the motor runs.
The potential for printing electrical elements is immense, as it might circumvent the standard provide and manufacturing chain, letting customers get customized elements inside hours.
