You in all probability heard concerning the notorious $600 hammer that the Pentagon supposedly paid for again within the ‘80s. That was a delusion based mostly on a misunderstanding, however giant establishments — together with hospital and analysis labs — usually pay much more than you may count on for his or her gear. Liquid handlers, for instance, can price a number of tens of hundreds of {dollars}. However Triggy was capable of reproduce that performance with his pipetting machine that prices only a couple hundred {dollars} to construct.
The excessive prices of laboratory gear aren’t only a results of bureaucratic waste and institutional worth gouging. That gear wants to satisfy rules, carry certifications, keep calibration, and be serviceable, which all provides up. However when these components aren’t so necessary, it’s attainable to do the identical job at a a lot, a lot decrease price.

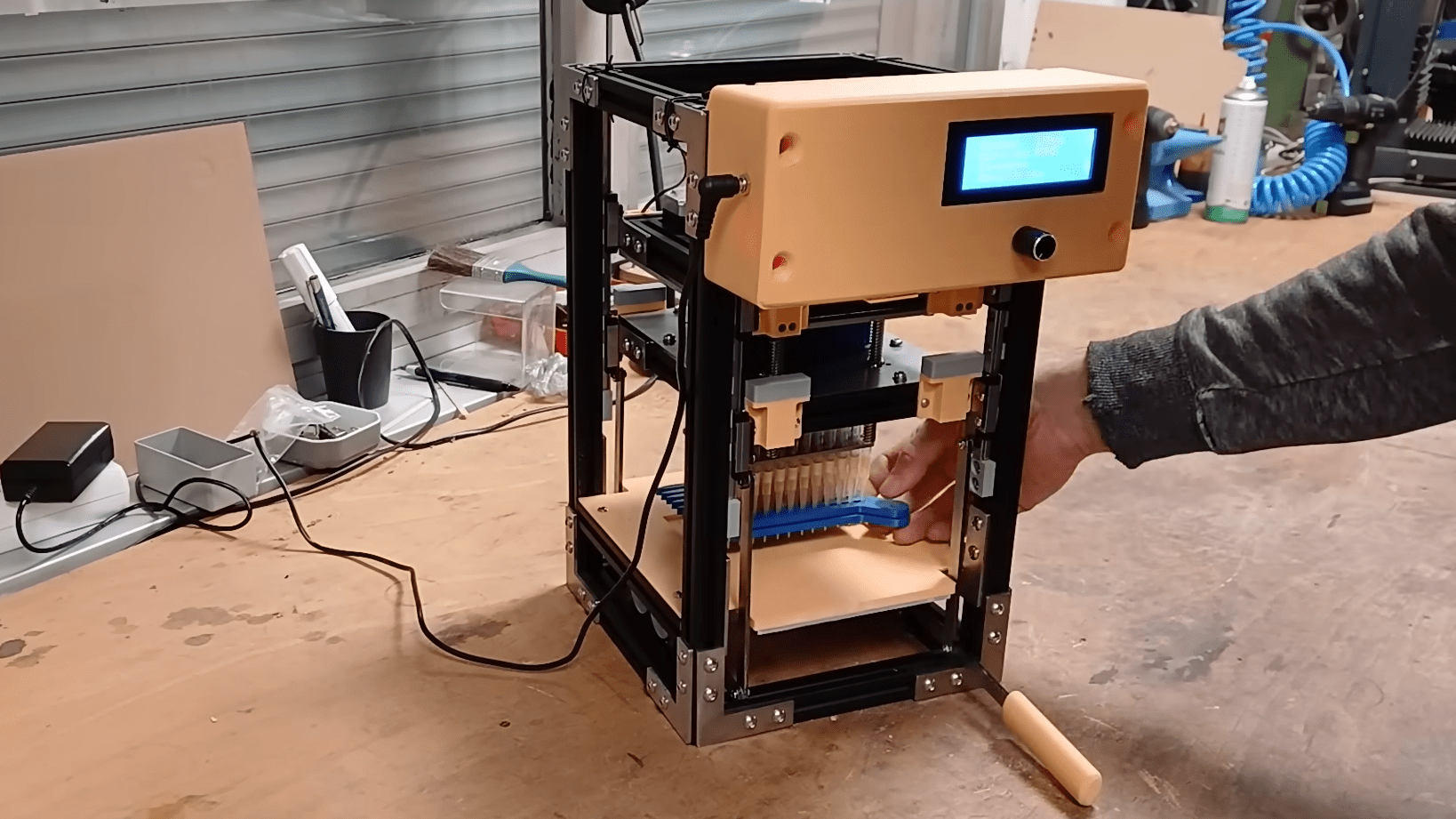

That’s what Triggy did right here. He constructed a 96-channel digital pipette machine that may aspirate after which dispense exact volumes of liquid. That’s a useful machine to have in the event you’re doing exams throughout a lot of samples, which is a quite common process in hundreds of labs all over the world.
Triggy’s machine works by utilizing 4 stepper motors to maneuver a plate that pushes or pulls 96 syringe plungers concurrently. The syringes mount onto a grid plate that retains them organized in orderly and constant rows. A operated by hand linkage system lets the consumer elevate the syringes out of a tray shortly for environment friendly workflows.
That is an open supply undertaking, but it surely isn’t but totally documented and Triggy doesn’t present any particulars within the video concerning the digital {hardware}. Nonetheless, the machine seems to make use of an Arduino UNO Rev3 board and a CNC defend to manage the steppers. The consumer can set parameters and activate the capabilities utilizing a easy management knob paired with an LCD display.
Skilled labs will proceed to make use of skilled machines for this type of work. However Triggy’s design is ideal for citizen scientists and anybody else that should do plenty of pipetting on a funds.
