The USB Energy Supply (PD) specification has turned USB ports right into a fast-charging powerhouse able to delivering as much as 240W of energy. This functionality is quickly turning USB PD right into a common charging normal for all the pieces from smartphones to high-performance laptops. This sounds good on paper, however in actuality, USB PD energy provides aren’t at all times all the pieces they’re cracked as much as be.
One of many good options of the usual is that the charger and machine transparently talk with each other to find out one of the best voltage to function at. We simply plug the machine in and all the pieces magically works—often. Nevertheless, some energy provides don’t negotiate the right voltage degree with a tool. Or extra generally, they do appropriately decide one of the best setting, however fail to ship the voltage that was agreed upon.
USB VSense (📷: Meticulous Applied sciences)
This cannot solely result in sluggish charging periods, however may trigger harm to the gadgets being charged. With this drawback in thoughts, Meticulous Applied sciences has developed a monitoring machine known as USB VSense. It connects between the charger and machine, and supplies an easy-to-read show that exhibits the negotiated voltage degree. It additionally has indicators that allow you to know if that voltage is being faithfully provided, or if there’s a significant deviation.
Somewhat than counting on a numeric show or a companion app, USB VSense makes use of a easy however efficient array of color-coded LEDs. Every LED corresponds to a hard and fast USB PD voltage degree, starting from the usual 5V all the best way as much as the newest 48V Prolonged Energy Vary mode. Refined blinking patterns point out whether or not the measured voltage is inside 5% or 10% of the anticipated worth, making it doable to identify undervoltage or overvoltage circumstances at a look.
Drawing lower than 6 mA underneath regular operation, the machine could be left plugged right into a hub or charger indefinitely with out affecting efficiency. This additionally makes it helpful as an early warning system: if a hub or energy provide turns into overloaded or unstable, the LEDs will instantly mirror the change. The machine helps enter voltages as much as 55 V, permitting customers to soundly confirm doubtlessly hazardous USB PD sources earlier than connecting costly {hardware}.

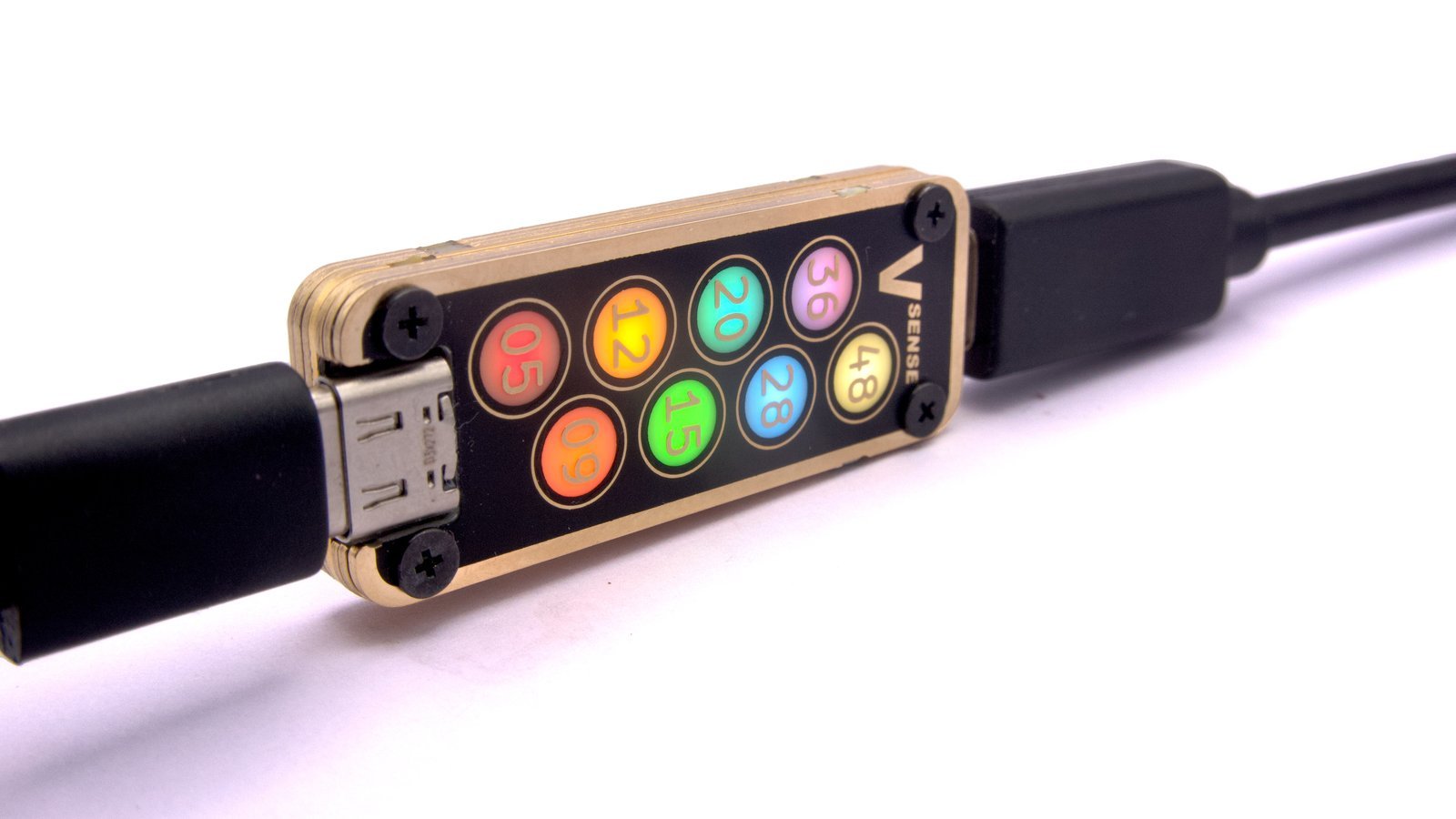

The machine is put in inline (📷: Meticulous Applied sciences)
Internally, USB VSense is constructed round an ATtiny406 microcontroller, utilizing its 10-bit ADC and inside voltage reference to attain millivolt-level decision throughout a large measurement vary. It passes by way of USB 2.0 knowledge, configuration channel, and sideband indicators, making certain compatibility with regular USB operation. The compact, stacked-PCB building ends in a rugged device that measures simply 56 mm lengthy and requires no enclosure past the circuit boards themselves.
As an open supply challenge, USB VSense additionally appeals to builders and {hardware} hackers. Each the {hardware} design and firmware might be out there for modification, permitting customers to customise voltage thresholds, LED conduct, and even repurpose the machine for different USB energy experiments. USB VSense sells for $65. For those who’d like your individual, try the total particulars over at Crowd Provide.
